Better Overview With ProViu®360

Whether maneuvering on confusing ramps, approaching busy stops, reversing with overhanging construction machinery, or taxiing between narrow warehouse racks – the ProViu®360 surround-view system always ensures perfect visibility.

Discover our ProViu®360 Surround-View System

More overview and safety in challenging working environments

Human error behind the wheel cannot always be avoided – especially for those for whom driving is part of their job. But it is precisely in these situations that accidents often occur in which people are injured. Therefore, it is essential to support drivers and operators of commercial vehicles with a complete overview of their surroundings. The ProViu®360 surround-view system is a modern driver assistance system that helps prevent such avoidable incidents.

It usually merges four images into one seamless picture from a bird's eye view. This provides the driver with a 360° view of the vehicle's surroundings, minimizes blind spots and supports the observation of pedestrians and objects in the immediate vicinity of the vehicle.

The ProViu®360 surround-view system is even able to display objects that are normally outside the field of vision or cannot be seen directly in the rear-view mirrors, making maneuvering easier.

The ProViu®360 display offers various single- and surround-views as well as a dynamic 3D surround-view in which the operator can move freely 360° around the vehicle using touch gestures.

Whether leisure or special vehicle, commercial or industrial use, the ProViu®360 surround-view system simplifies vehicle operation, especially in critical situations, for example in dense city traffic, in narrow loading/unloading areas, in cramped factory yards, on busy construction sites or at campsites.

ProViu Monitor
ProViu Monitor

The Benefits of ProViu®360 at a Glance

  • HD surround-view system for commercial and special vehicles
  • 4 megapixel HDR cameras ensure the best image quality even in poor lighting conditions
  • Super wide-angle cameras take pictures of the surroundings, which are merged and scaled by the system – creating a perfect all-round view of the vehicle from a bird's eye perspective in real time
  • Blind spots are eliminated, enabling safe and easy maneuvering in tight spaces
  • Seamless image transitions thanks to complex algorithms
  • The screen content can be individually configured by the installation partner and shows a view tailored to the driver's needs
  • Robust system developed for challenging working environments
  • Small component size enables better integration on the vehicle
  • Lower repair and damage costs for more efficiency and less downtime

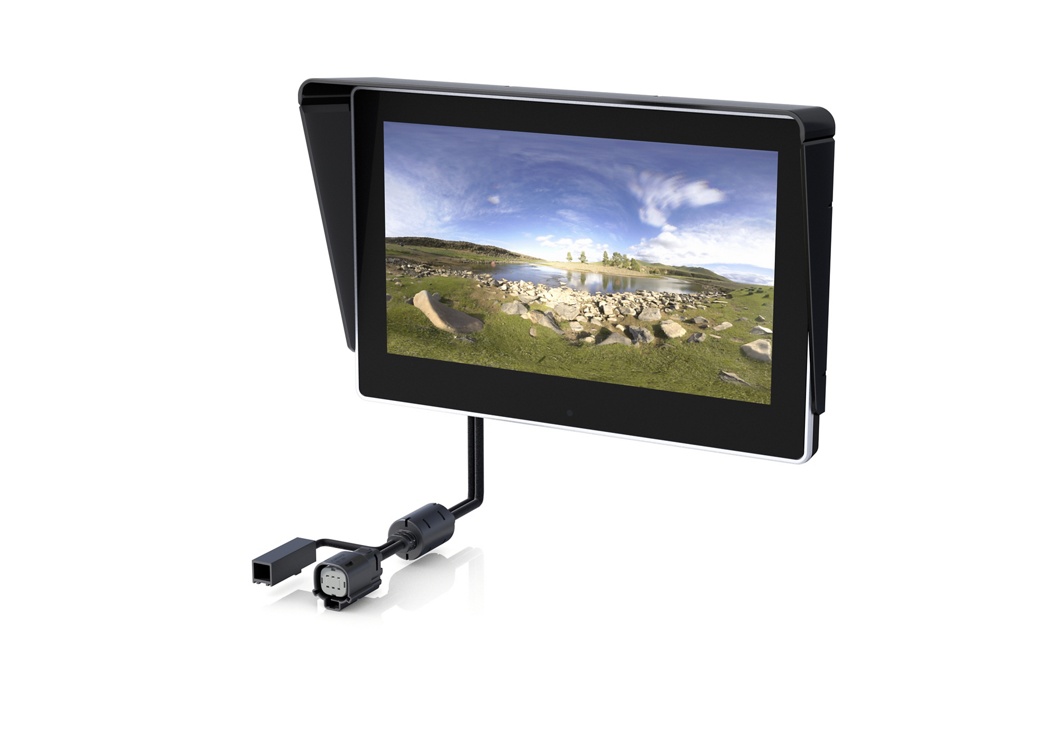

A black monitor with a sunshade displays an outdoor scene featuring green fields, a rocky area, and a blue sky with white clouds. Attached to the monitor is a cable with connectors. The setup is isolated on a white background.

Technical Specifications

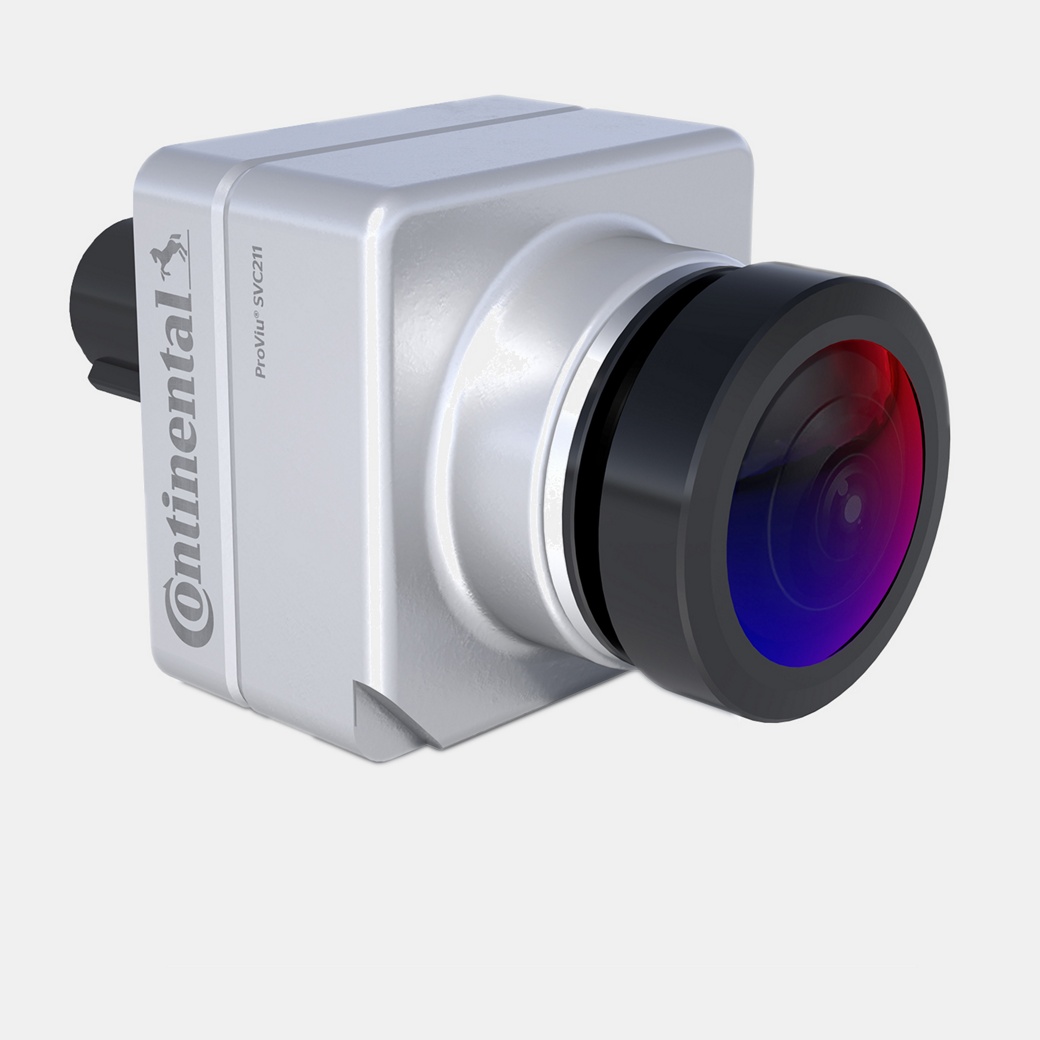

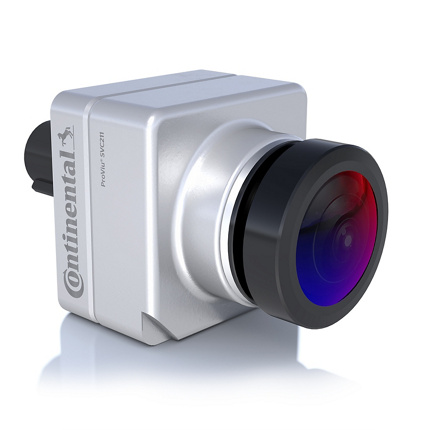

 A silver-colored, compact camera with a prominent, wide-angle lens featuring a gradient tint of red and blue. The camera has the brand name "Continental" printed on the side. It appears designed for specialized or industrial use.

Cameras
4 x High-Dynamic Range (HDR)

Camera resolution
1.3 megapixels

Horizontal imaging radius
194 degrees

HD touch display
10.1“

Resolution
1280 x 720 (16:9) pixels

Brightness
800cd/m2 typ

Contrast
600:1

Display technology
Optical bonding

Protection class
IP 67


Additional Features

With the optional clean camera function, the system monitors itself and indicates when a camera is dirty or does not have a clear view – ensuring reliability at all times.

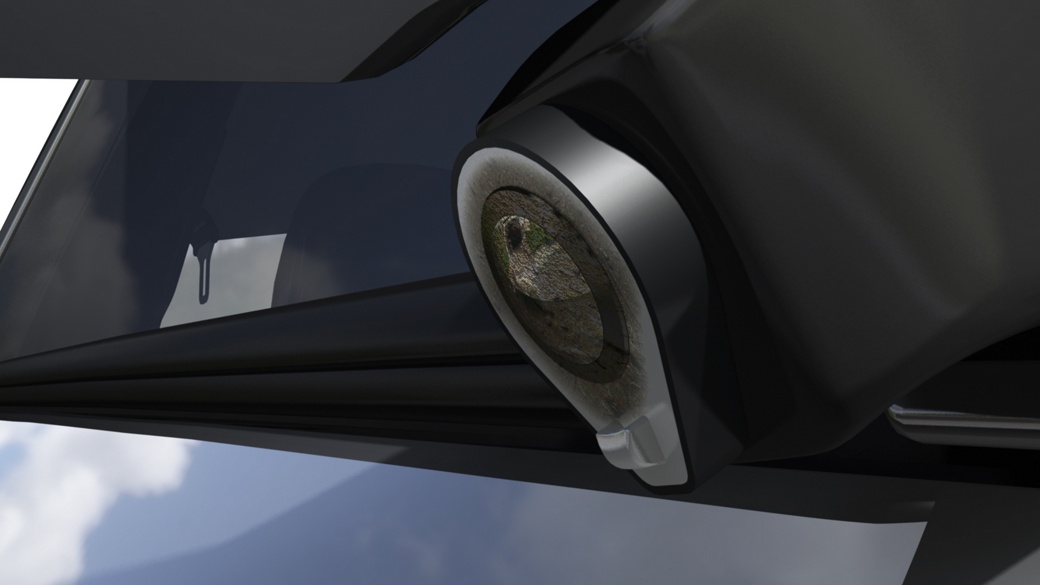

 Close-up of a modern side-view camera mounted on the exterior of a vehicle, replacing traditional mirrors. The camera is sleek with a metallic finish and is integrated into the car's design, reflecting surrounding elements like the sky and clouds.

By merging different technologies, larger distances and areas on and around the vehicle can be monitored. Radar sensors can be used to make turning situations safer, and ultrasonic sensors on the vehicle make parking and maneuvering even easier in order to reduce damage and accidents. Merging the video stream and sensor feedback on one HMI reduces the efforts of observation and operation for the driver.

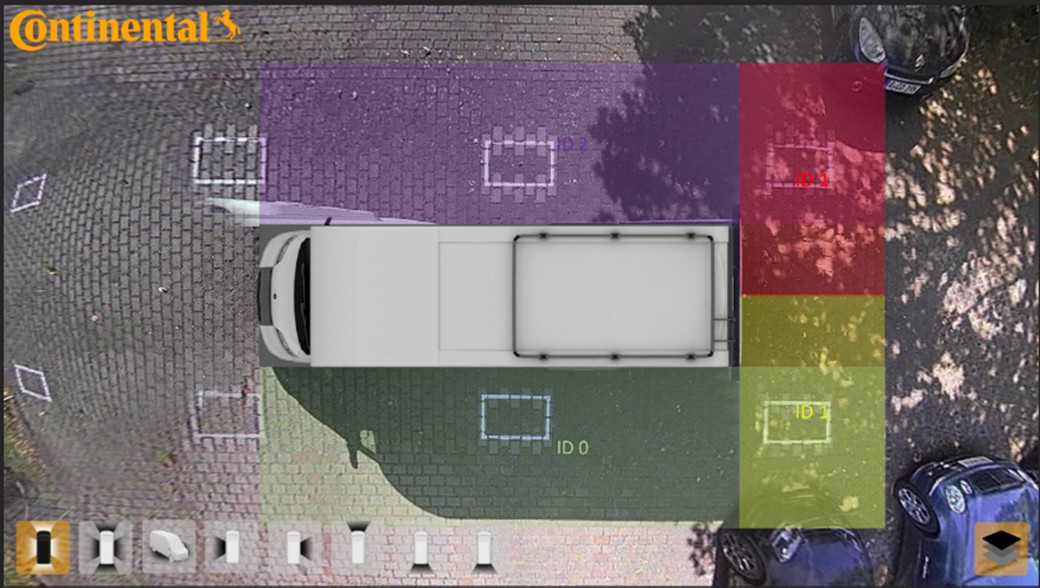

Schematic representation of a vehicle from above. The areas on and around the vehicle that can be scanned by various sensors are indicated by different colors.

From our perspective, it is essential to provide drivers of large and expansive vehicles with a better overview of their surroundings and to eliminate all possible blind spots."

Chris Meißner

Head of Product Management Special Vehicles


Continental ProViu Coach Bus.jpg
Service

Retrofitting made easy

Our partner in Germany, Wüllhorst Fahrzeugbau, is at your service for simple retrofitting with the ProViu®360 surround-view system.
For partners in other countries, please use the form below to contact us.

Click here for retrofitting
