    Active Position Switch (APS)

    The Active Position Switch with integrated magnet is an easy and cost effective sensor, usable to control the position of different ferromagnetic parts.

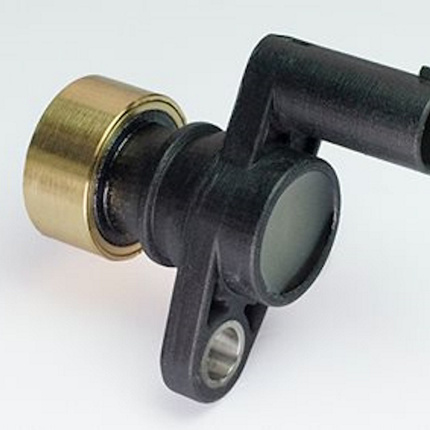

    • aps-sensor-active-position-switch.jpg

    The Position Switch is designed for use of all kind of commercial vehicles and for rough environments.

    Benefits & Features

    • Large application range
    • Use in rough environments
    • Sealed Connector Interface
    • Current interface

    Technical Information

    3.5 ... 24V

    Supply Voltage

    28V

    Max. Voltag

    -40°C ... +150°C

    Operating Temperature

    IP67 / IP69

    Protection

    Switching point typ. 3mm for DCO4 (low carbon steel)

    Low 5mA ... 6.9mA, High 12mA ... 17mA

    Switching points/current
