    Instrument cluster with 12.3-inch color display

    MultiViu® Professional 12 Generation 2 – an instrument cluster with a 12.3-inch color display and maximum design freedom, in which animations and videos can also be implemented. Fully programmable, it adapts to all individual requirements. Thanks to its modular structure, it fits seamlessly into a wide variety of front frames.

    Discover the 2nd Generation of our premium instrument cluster MultiViu® Professional 12

    Modular, flexible, innovative

    The MultiViu®Professional 12 in its 2nd generation is Continental's most innovative standard instrument cluster. It is fully programmable for different needs and requirements and supports the trend towards larger and more colorful displays with its 12.3" TFT color display with optical bonding.

    The MultiViu®Professional12 Generation 2 offers maximum freedom in the design of the HMI screen and easy implementation of video and camera images. In addition, the MultiViu®Professional12 Generation 2 can be quickly integrated into the existing vehicle architecture.

    The MultiViu®Professional12 Generation 2 is flexibly programmed using a perfectly coordinated software toolchain with KIBES®-5 PLC and the automotive implementation software CGI Studio with high-end graphics. In addition, it offers a modular structure with a main display module that can be integrated into different front frames to fit seamlessly into the vehicle cabin design.

    The benefits of our MultiViu® Professional 12 Generation 2 at a glance

    • Flexible, customizable and situation-controlled human-machine interface according to "Simplify your Drive"
    • Powerful software that meets the requirements of graphics and needle animation
    • Wide range of interfaces for easy integration into the vehicle architecture
    • Larger and colorful display presents the increasing flood of driver information and driver assistance functions in a structured way
    • Powerful dual µC hardware to flexibly support future MMS requirements
    • Time- and cost-optimized development during the project phase by using the Continental software toolchain
    • Modular product concept with customizable telltale module and front frame
    • Can be integrated into the Driver's Workplace
    MultiViu Compact 7

    Technical Specifications

    MultiViu Compact 12

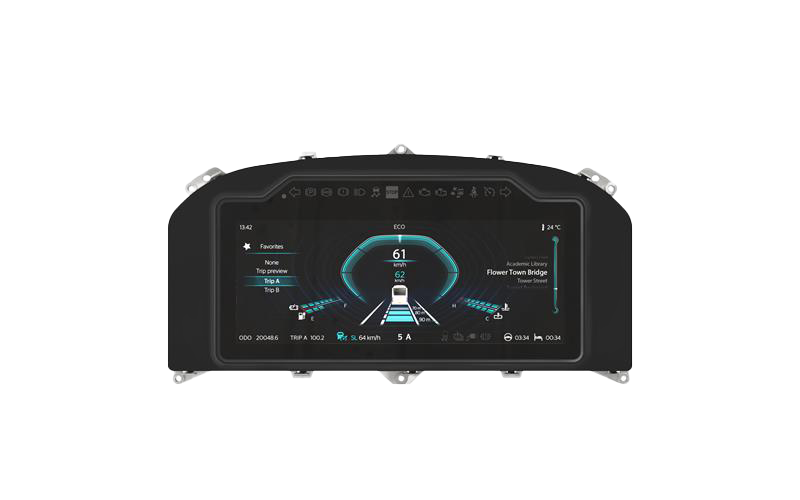

    Dimensions Classic
    414 x 219 x 56 mm

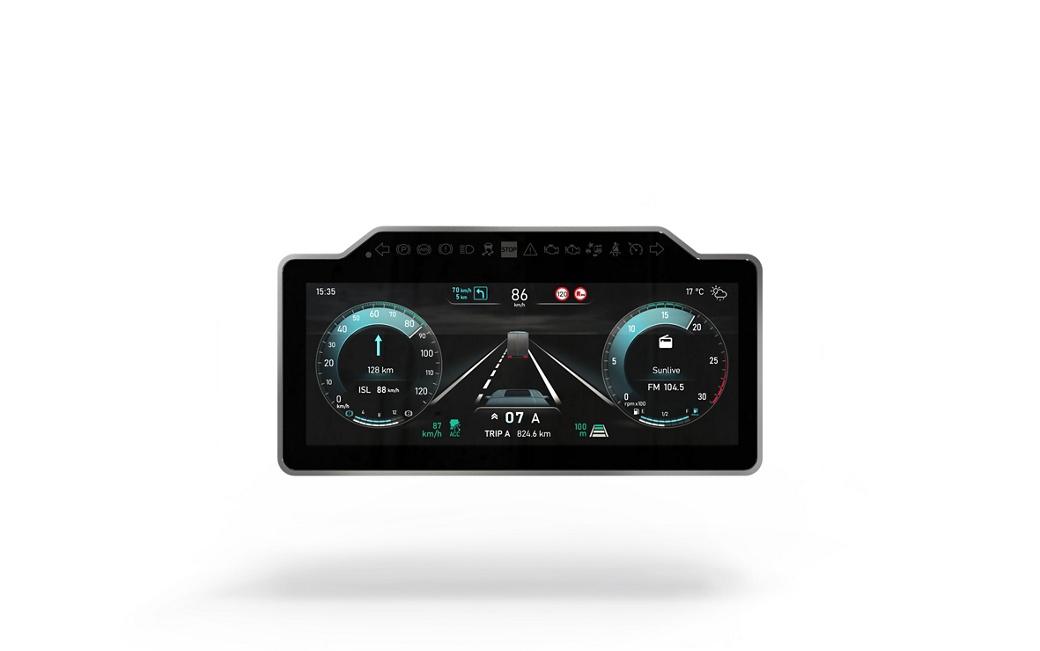

    Dimensions Modern
    335 x 173 x 54 mm

    Display size
    12,3 inches

    Aspect ratio
    8:3

    Resolution
    1920 x 720 pixels

    Operating temperature
    -30°C to +70°C

    Protection class front or back/side
    IP 54/IP20 respectively

    High-speed CANs
    4

    Downloads

    More product highlights


    MultiViu® Compact 7

    Digital instrumentation for special vehicles, minibuses and motorcycles

    Learn more

    Typical KIBES Architecture for Buses

    Relying on our KIBES® multiplex system means using a cost-optimized and scalable platform solution for buses – ideally designed for all sorts of vehicle volumes.

    Find out more

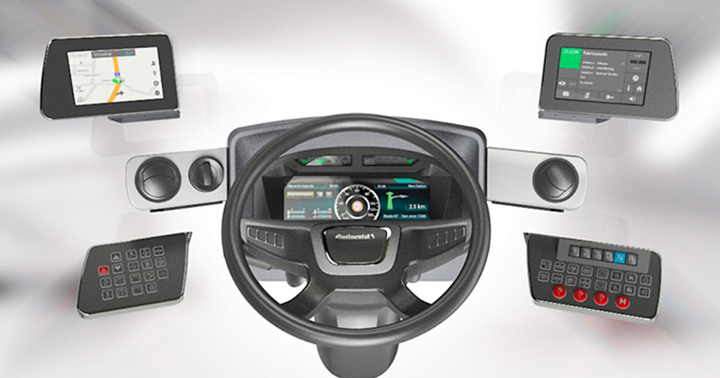

    Modular Concept at a Glance
