    eMobility for Two- Wheelers

    Because we believe in the environment, we introduce our solutions for electric two-wheelers: the electric vehicle control unit (eVCU) ensures a smooth, efficient, and safe driving experience. Our 48V Battery Management System (BMS) enables optimal performance and safe operation.

    Discover Our eVCU for E-Vehicles

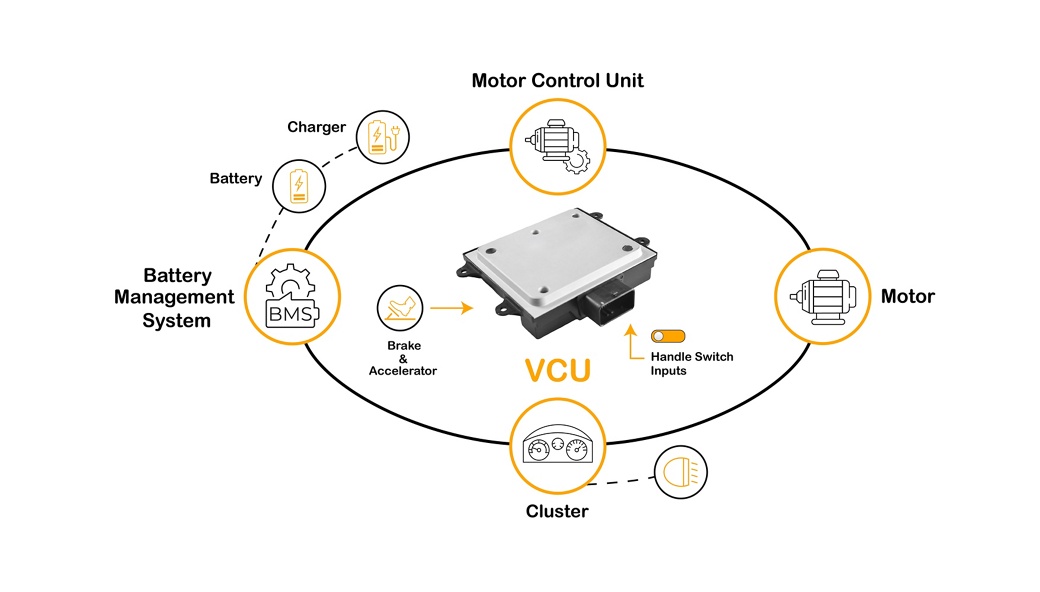

    Control and coordination for e-bike subsystems

    For users of e-bikes and scooters, a smooth, efficient and safe driving experience depends on a good coordination of all vehicle subsystems. Our Electronic Vehicle Control Unit for E-Vehicles provides functions like torque coordination, system state control, load management, on-board charging operation and even drive mode strategies based on driver inputs. It operates at 12V and acts as a CAN gateway between 12V and 48V systems and supports vehicle diagnostics.



    That way, it enables an efficient power management, enhanced safety and stability, the seamless integration of functions as well as real-time monitoring and diagnostics.

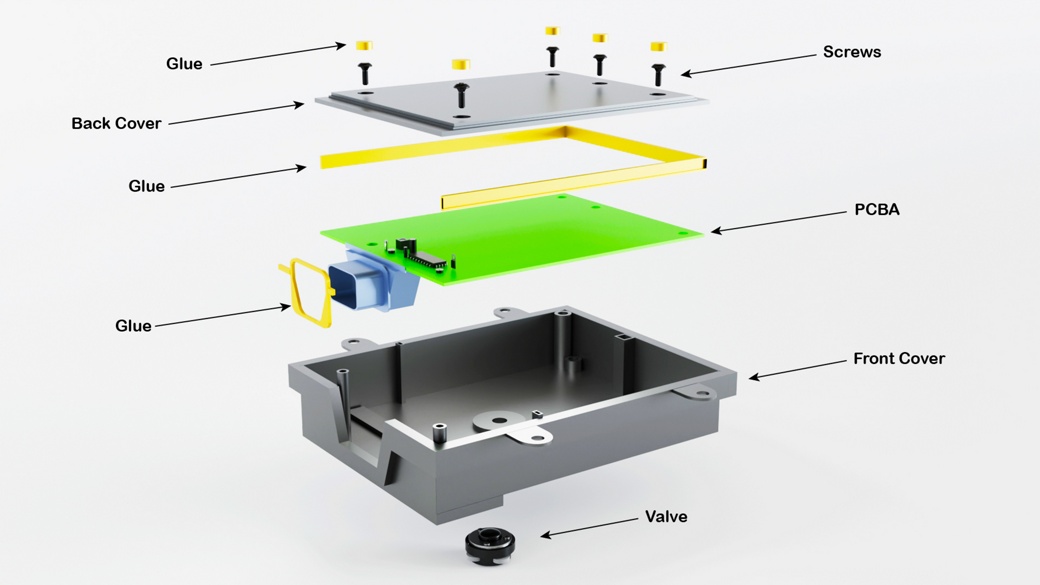

    VCU Exploded View.jpg
    • Power supply: 12V
    • Wake up through digital input, CAN and LIN communication
    • Inputs: 2 analog, 13 digital (6x high/5x low)
    • 2 frequency inputs for speed sensor
    • Outputs:7 high-side and 1 low-side drive
    • Error diagnostics for loads
    • TRAVEO™ T2G - 32-Bit controller
    • 48P MOLEX 500762-0481 Connector
    • Functional safety: ISO 26262 ASIL B

    • Controlling and Coordination of   subsystems   in an electric vehicle to ensure smooth, efficient and   safe driving experience.
    • The vehicle control unit (VCU) may monitor onboard charging operations and provides torque coordination, operation, and drive mode strategies based on driver inputs.
    • VCU operates at 12 V and acts as a CAN gateway between 12V and 48V system also supports Vehicle diagnostics.
    • The main components include a power supply, I/O circuitry, analog inputs, LIN and a CAN communication module.

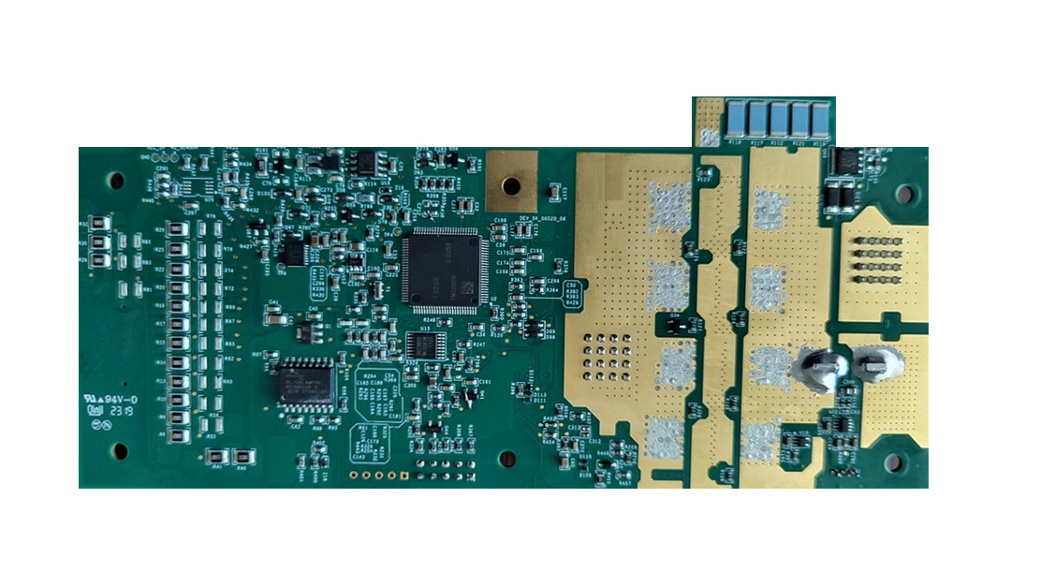

    Discover Our 48V Battery Management System

    Optimal performance and safe operation for e-bikes and other applications

    Optimal performance and safe operations – that is what riders of e-bikes, e-scooters and other electric vehicles expect from their batteries. The 48V Battery Management System (BMS) was developed specifically for these applications according to state-of-the-art automotive standards including functional safety and cybersecurity. It continuously monitors and controls parameters like voltage, current and temperature of up to 16 battery cells in electric two-wheelers, L7E vehicles, 48V stationary storage solutions as well as off-highway applications. The application software supports sophisticated BMS features such as diagnostics, state of health (SoH) and thermal management. It is furthermore capable of monitoring the isolation resistance for both the battery pack as well as the vehicle system.

    • Supports multiple Li-ion chemistries (e.g. NMC, LFP, etc.)
    • Battery cells: 3 to 16 (in series configuration)
    • Cell voltage: 0.5 to 5V
    • Cell voltage measurement accuracy: +/-  1  %
    • Operating voltage from cell stack: 8 to 80V
    • Temperature sensors: up to 8
    • Balancing current: up to 150 mA
    • Continuous current: 75 A
    • Peak current: 150 A
    • Current measurement accuracy: +/-  1  %
    • Operating temperature: -25 to +60 °C
    • Storage temperature: -40 to +85 °C
    • Temperature measurement accuracy: +/-  2  °C
    • Sox estimation accuracy: +/-  3  %
    • Supports external hardware wake-up
    • Communication: CAN 2.0B
    • Functional safety: ISO 26262 ASIL C

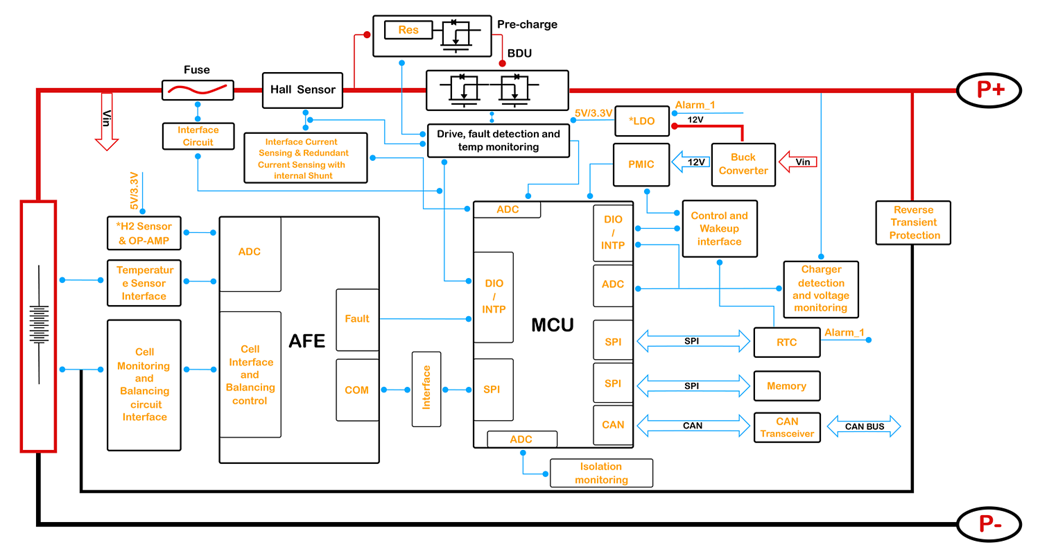

    BMS Architecture
